Geeky Hobby Number 1: Do-it-yourself Electronic Circuits.

Yep. I like the smell of melting lead and tin in the morning. ;-) Why spend $15.00 on a store-bought radio or audio amplifier when you can spend hundreds of dollars on tools and parts and then spend countless hours hunkered down over a magnifying light soldering the pieces together and making your own radio or audio amplifier? Because it's MORE FUN. When you test a cicuit you built yourself, and it actually works the way you intended it to work, well there are only a few things more satisfying than that, let me tell you.

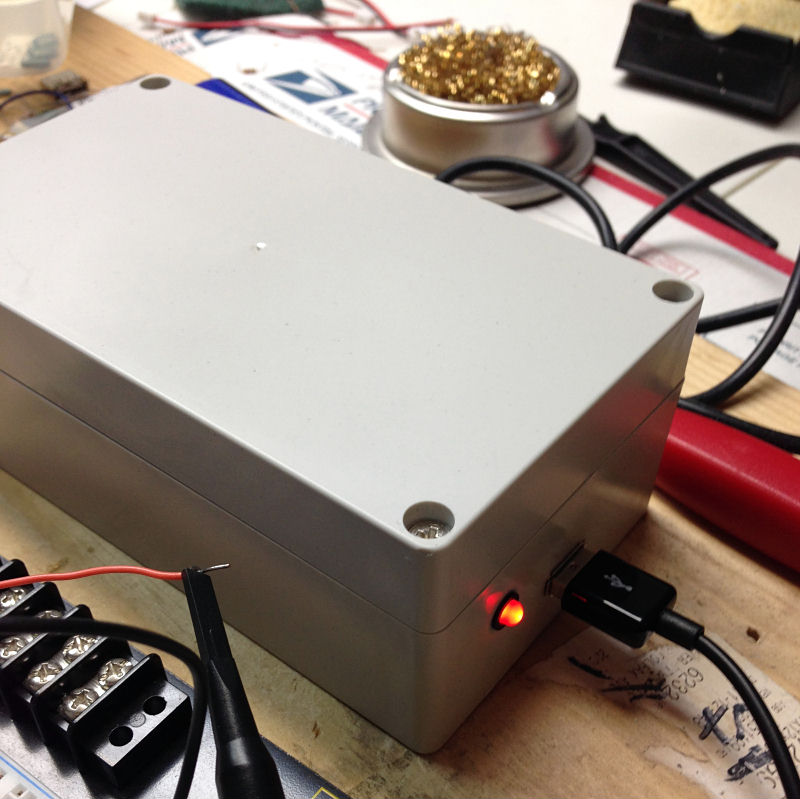

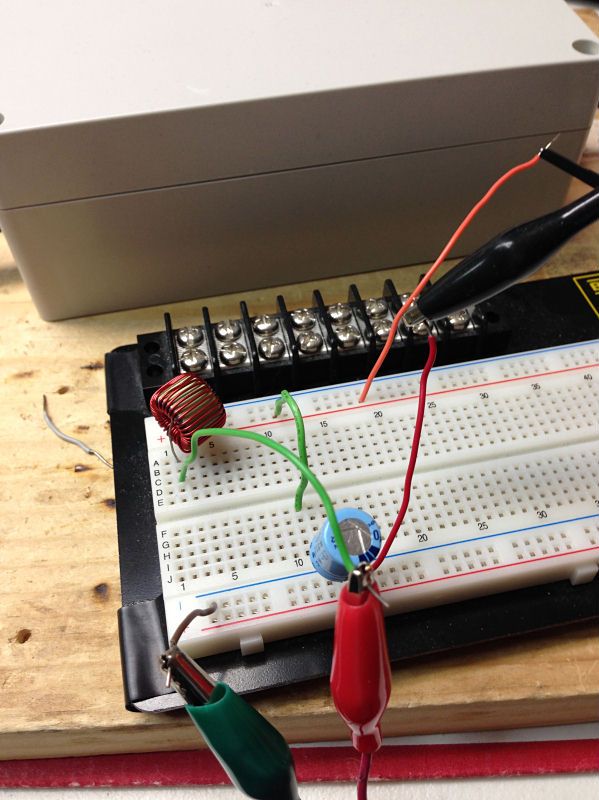

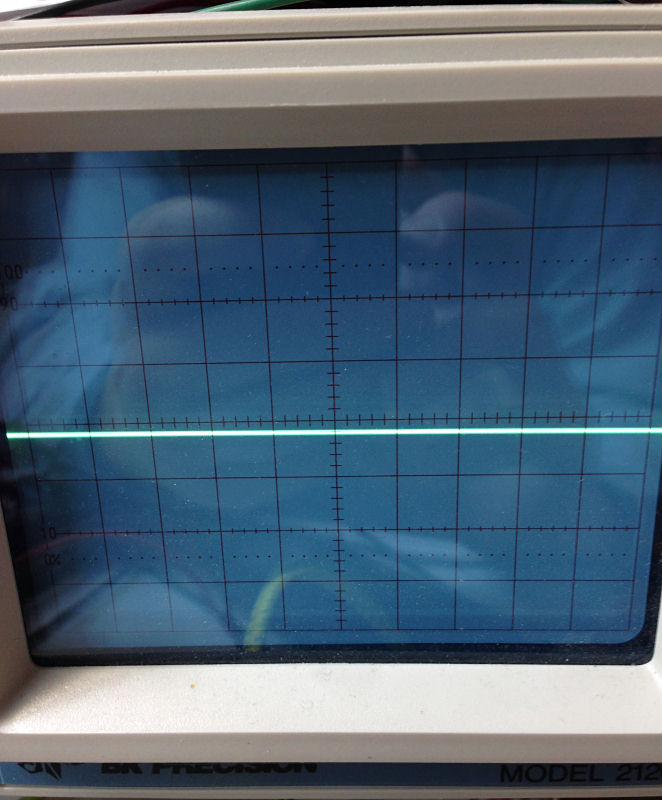

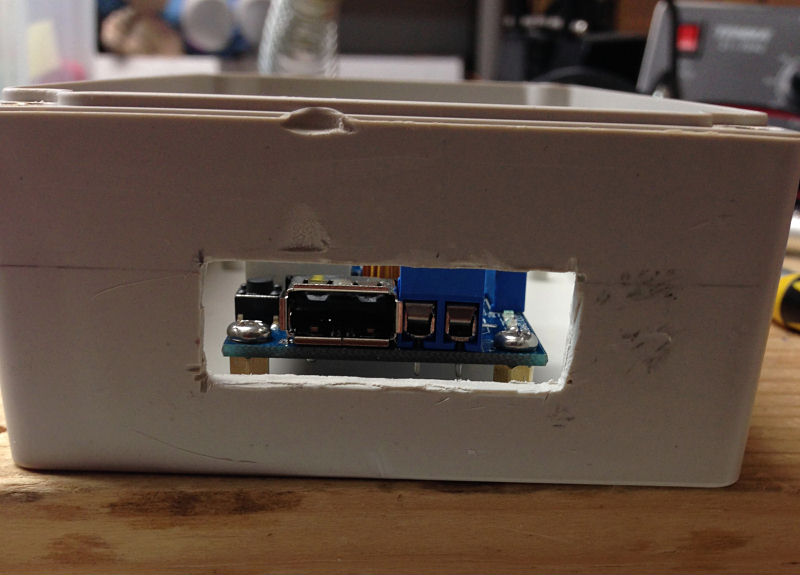

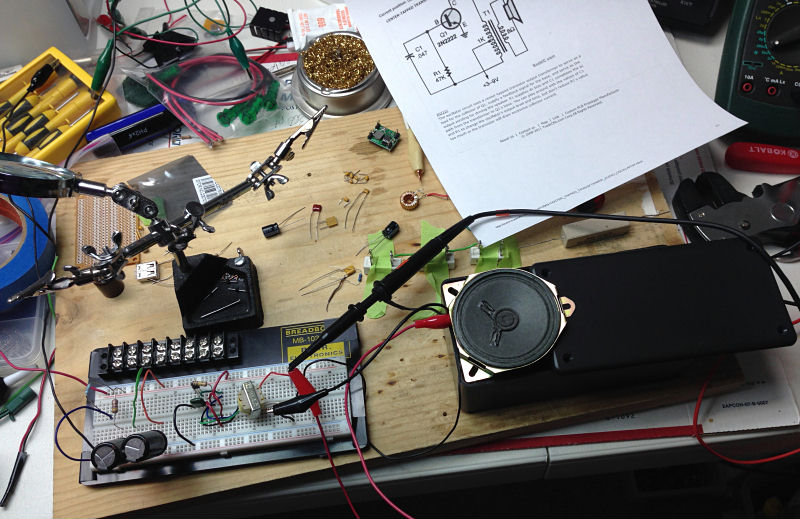

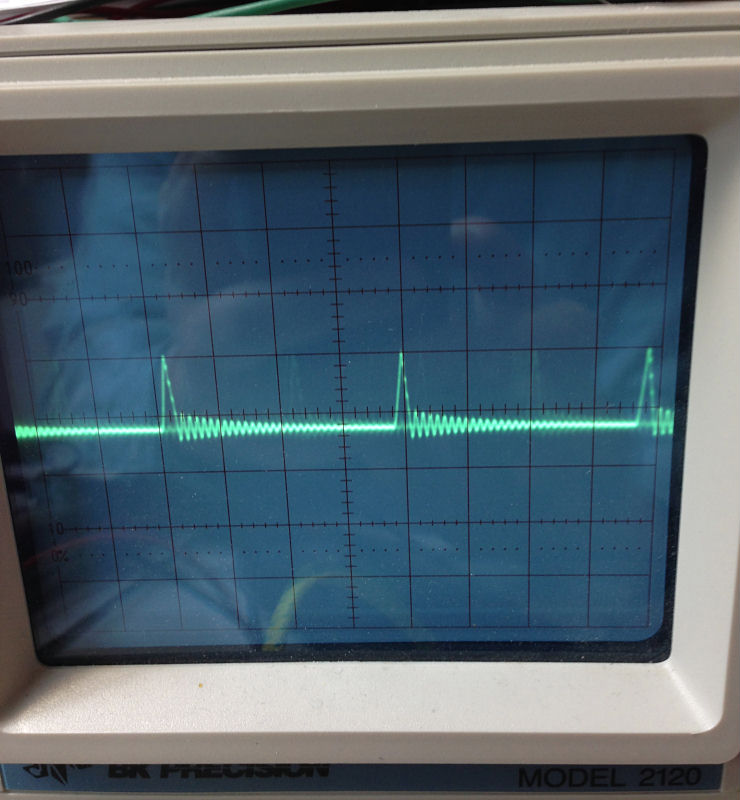

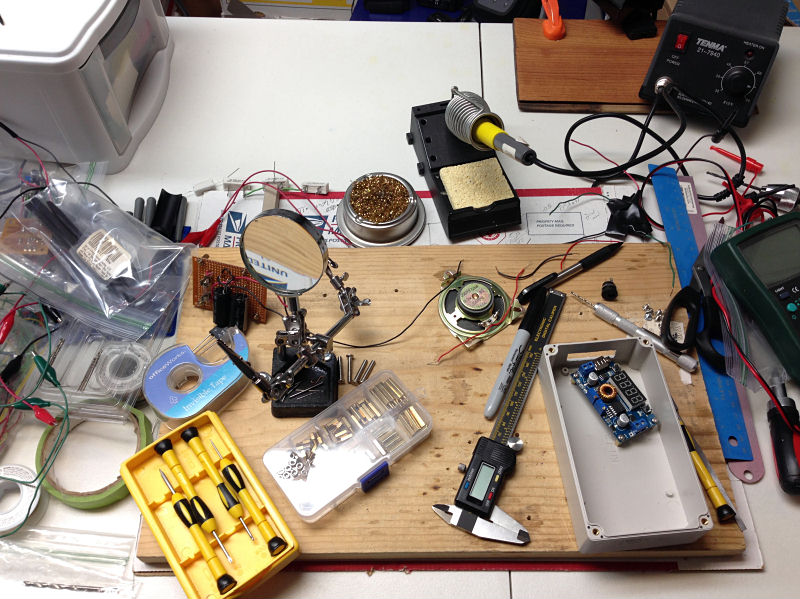

Some pictures:

Geeky Hobby Number 2: Model Rocketry.

I am a "BAR" (born-again rocketeer). In the 1970's, as a child, I learned to love the space age hobby of model rocketry. My buddies and I built Estes and Centuri rockets. We launched them from the local junior high school athletic field. Some of them even came back.

Geeky Hobby Number 3: Railroads and All things Train-like.

My paternal grandfather was a locomotive engineer for the Norfolk & Western Railway. He made many trips driving steam-powered locomotives through the town where I was born (Petersburg, VA). Another ancestor, on my mother's side of the family, was also a locomotive engineer. I guess you could say I have railroading in my blood. I love seeing locomotives, and the trains they haul, in action.

To honor my railroad heritage, and my love of railroading, the background image for this web page is Norfolk & Western K-2a class steam locomotive number 128. This is a 4-8-2 wheel arrangement locomotive that was originally made in the early 1920's. The K-2a locomotives were later streamlined, as you see here, and became very handsome. This picture shows number 128, eastbound, at the station in Roanoke, Virginia, on May 5, 1957. The original picture can be found here.

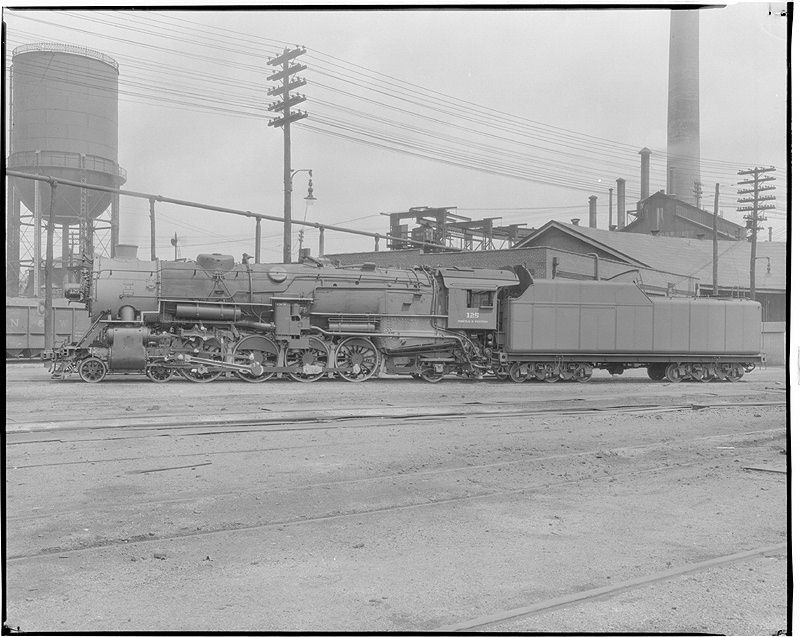

Here is another N&W K-2 class locomotive, number 125, without streamlining.

More information about the N&W K class locos can be found here.

Geeky Hobby Number 4: Web Coding with Javascript.

I love coding with JavaScript to place useful tools on my website. The following tool will calculate the value of the "R2" resistor for a 555 timer IC running in astable mode. All you do is enter the value of the R1 resistor, the value of the capacitor, and the desired output frequency! The calculator also shows you the closest E12 series resistor value to the calculated value, the high and low time of the square wave, and the duty cycle of the output. Check it out!

555 Timer IC Astable Mode Calculator: Calculate the Value of R2

To calculate the value of R2, enter the value of R1, the value of the capacitor, and the desired output frequency:

Note: Enter only numbers (and a decimal point, if needed). Do not use commas or "K" in your numbers. Do not leave any of the user input fields blank.

Good Rules of Thumb: For frequencies in the audio range (20 Hz to 20000 Hz), try R1 values from 1000 ohms to 10000 ohms. Don't set R1's value below 1000 ohms, as stability problems might result. For the capacitor value, try values in the range of .0001 microfarad (100 picofarads) to 1 microfarad. Generally, for higher frequencies, you want a smaller value for the capacitor, as capacitor has to charge up and discharge more rapidly to produce the higher frequency. Capacitors usually come in a fairly limited range of values, so look at the actual capacitors you have access to when selecting a capacitor value.

More Good Rules of Thumb: You want the resulting R2 value to be at least 10 times the value of R1 but not crazy high (for example, you want to avoid R2's value being in the 10's of millions of ohms). You do not want the value of R2 to be the same as or less than the value of R1. You want the resulting value of R2 to be large compared to the value of R1 as that will make the "duty cycle" of the 555 timer's square wave close to 50 percent. The duty cycle is "Time High / (Time High + Time Low)". The time high plus the time low is one, complete square wave cycle. So, if the time high is exactly the same as the time low, that is a duty cycle of 50 percent, as the time high is one half of the total time of one square wave cycle. You are trying to get to as close to a 50 percent duty cycle as you can without having to use extreme values for R1, R2, and C. Setting the duty cycle to as close to 50 percent as is practical makes the circuit consume less power. Without adding a diode to the 555 timer's timing pins (which comes with its own set of issues), you cannot achieve a duty cycle of exactly 50 percent, but you can get close. The duty cycle will always be a little bit higher than 50 percent.

Final Good Rule of Thumb: Since R2's value is going to be a number that the formula spits out, it is unlikely that it will be exactly the same as a standard resistor value. What to do? Use a trim pot for R2. You can then set the trim pot to precisely the value of R2 that the formula spits out.

Really the Final Good Rule of Thumb: If the calculator spits out a NEGATIVE number for the value of R2, that means it is IMPOSSIBLE to achieve the frequency you want using the R1 and C values you selected. You have to change the value of R1 and/or C. Try lowering the value of C. Try lowering the value of R1. Try doing both.

R1 (in ohms): (Values below 1000 ohms not recommended.)
Capacitor (in microfarads):
Desired frequency (in Hertz): (Standard 555 timer IC limited to 100000 Hertz.)



The value of R2 is:
ohms.



The time high (on or "mark") is:
microseconds (millionths of a second).

The time low (off or "space") is:
microseconds (millionths of a second).

The duty cycle (time high as a percentage of the total time (time high plus time low)) is:
percent.



Building the Circuit with the Closest Standard Value Resistor

The E12 series standard value resistor closest to the value of R2 is:
ohms.

If you build the circuit using the E12 standard value for R2, the output frequency of the 555 IC will be:
Hertz.
Your desired output frequency is  .

The difference between the actual output frequency, and the desired output frequency, is:
Hertz.
Note: A positive value in this box indicates that the actual output frequency is HIGHER than the desired output frequency. A negative value in this box indicates that the actual output frequency is LOWER than the desired output frequency.

The difference between the actual output frequency, and the desired output frequency, expressed as a percentage, is:
percent.
Note: A positive value in this box indicates that the actual output frequency is HIGHER than the desired output frequency. A negative value in this box indicates that the actual output frequency is LOWER than the desired output frequency.



Practical Output Frequency Limits of the 555 Timer IC

When you are using the high power (200 mA) version of the 555 timer IC (sometimes know as the "TTL" version, not the "CMOS" version), you are limited to a frequency output of about 100,000 Hertz. Some circuit builders can get a reliable, higher output frequency, but the original datasheet says that 100,000 Hertz is the upper limit.

As you can see by playing with the value of the capacitor using this calculator, to get a high output frequency of over, say, 20,000 Hertz, you need to reduce the value of the capacitor to a fairly small value, such as .001 uF or lower. To get a high-quality capacitor with a fairly tight tolerance at these lower values, you may need to use an expensive, bulky, plastic film capacitor. That may not be practical.

Also, as the output frequency increases, the duty cycle also increases. The duty cycle is the percentage of time the output stays in the high or "on" state for each cycle of the square wave. At duty cycles in the 70 to 99 percent range, a lot of power is consumed. Most designers of 555 astable circuits like to design for a duty cycle as close to 50 percent as possible. To achieve this (without adding diodes or transistors to the circuit), the value of R2 has to be much larger than the value of R1. A ratio of about 10 to 1 (R2 to R1) is a good rule of thumb. Practically, however, you cannot reduce the value of R1 much below 1,000 ohms (for stability and power consumption reasons). BUT! There is always a "but". But, if you make the value of R2 very large compared to R1, then the value of the capacitor has to go DOWN if you want a very high output frequency. So, it's a balancing act. Like most things in life. :-)
